Integrating Microsoft Entra ID (formerly Azure AD) with Sonatype Platform using OpenID Connect

Updated

.

Overview

This article describes how to integrate Microsoft Entra ID with Sonatype Nexus Repository and Sonatype Lifecycle using OpenID Connect (OIDC). The example configuration authenticates against a test user and a test group created directly in Microsoft Entra ID.

Note
This setup is intended for testing purposes only. Additional configuration and security hardening may be required for a production environmen

Steps

1. Configure Microsoft Entra ID

For additional background, refer to the official Microsoft documentation

Configure OIDC SSO for custom (non-gallery) applications.

1.1 Create a Group

  1. From the Azure Portal Home, navigate to Microsoft Entra ID.
  2. From the Add drop-down menu, select Group.

create group.png

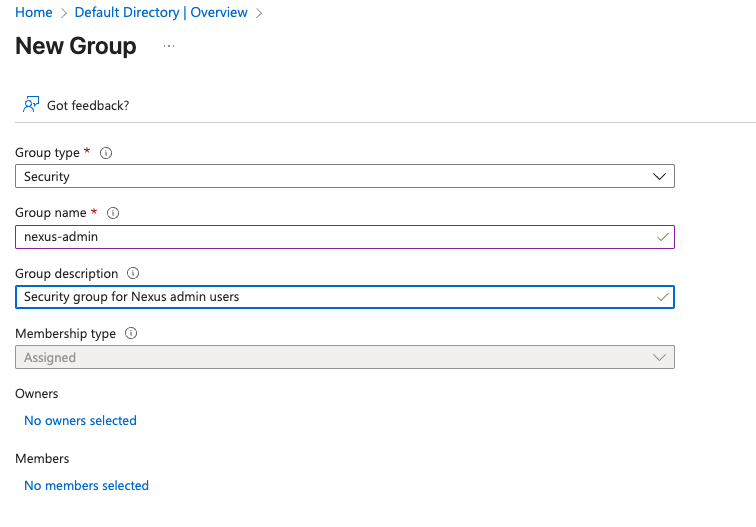

  1.  On the next screen, configure the Group name and Description, then click Create.
  • For this example, select Security as the group type.

create group -2.png

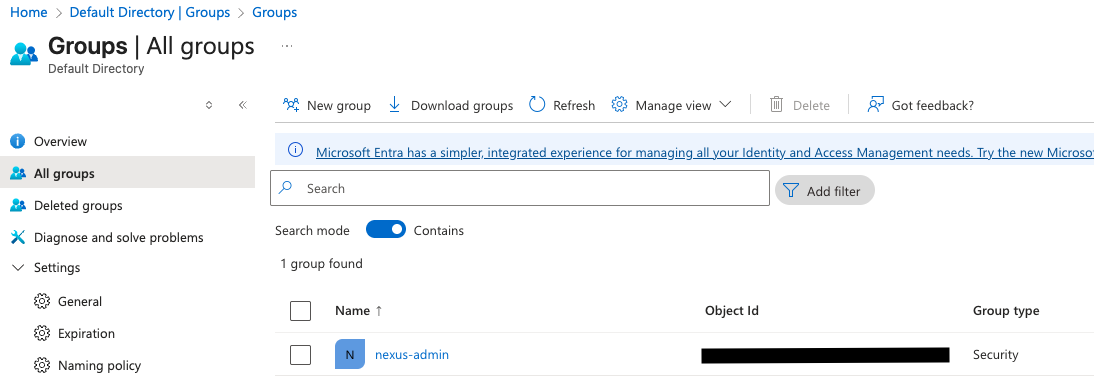

  1. After the group is created, navigate to Groups → All groups.
  2. Make a note of the group’s Object ID. This value will be required later when configuring role mappings in Nexus Repository.

Group Object ID.png

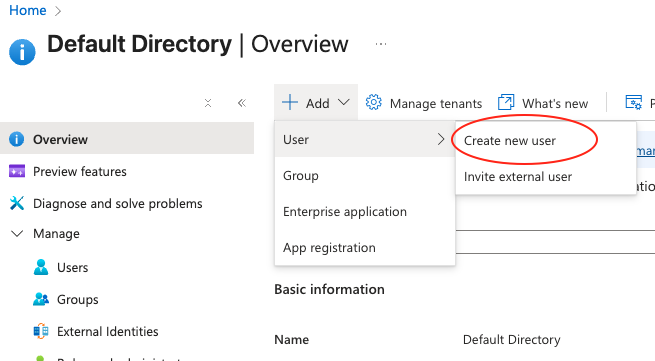

1.2 Create a Test User

  1. Return to the Directory Overview page.
  2. From the Add drop-down menu, select User → Create new user.

Create User 1.png

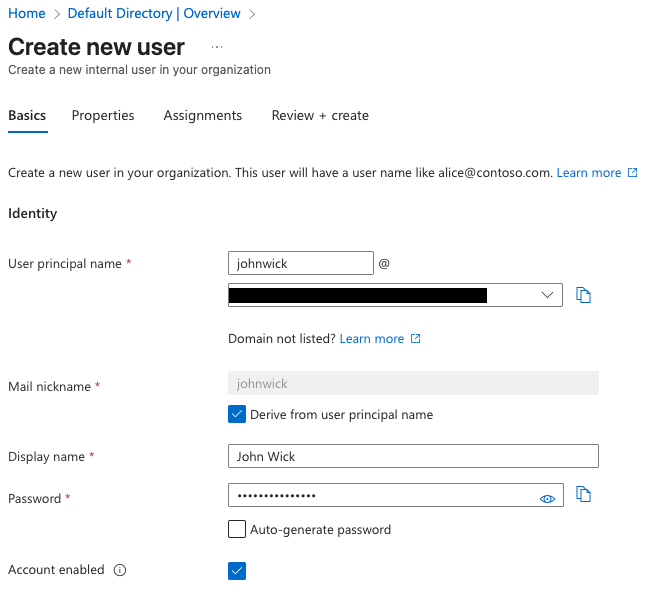

  1. Configure the user details on the next screen.

Create User -2.png

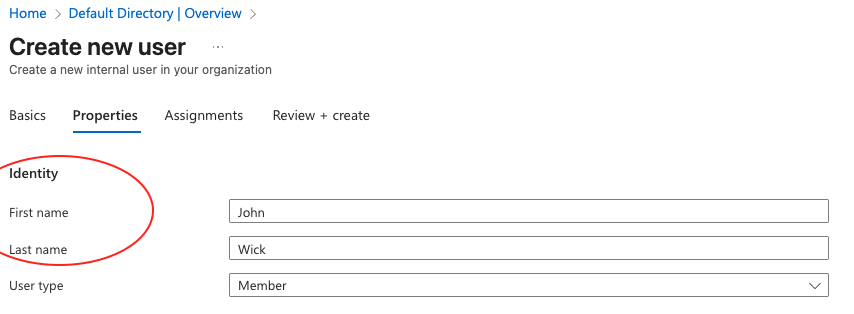

  1. Ensure the following fields are populated:
  • First name
  • Last name
  • Email

Create User - 3.png

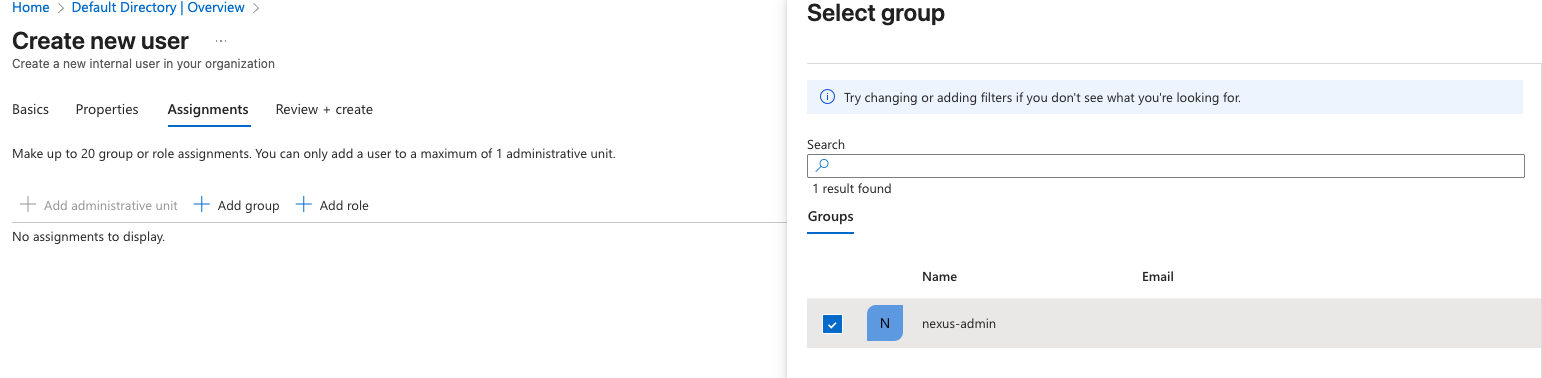

  1. On the group assignment screen, select the group created in Step 1.1.

Create User - 4.png

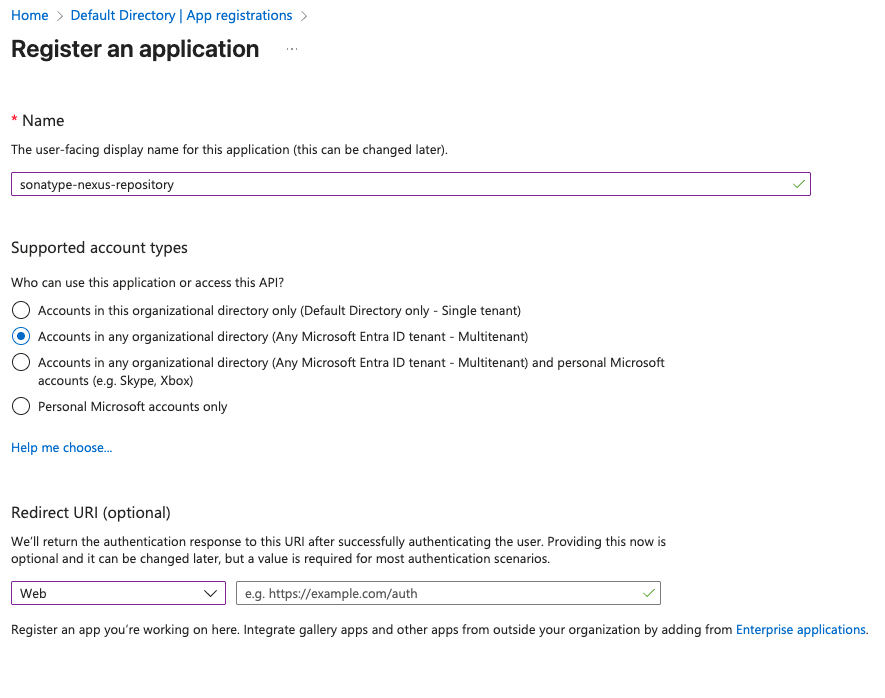

1.3 Register an Application

  1. Navigate to App registrations → New registration.
  2. Configure the application as required for your environment.

Application Register - 1.png

Redirect URI Configuration

Use the appropriate redirect URI based on your Nexus Repository version:

  • Nexus Repository 3.86
<your Nexus repository URL>/oidc/callback?hash=%23browse%2Fwelcome

  • Nexus Repository 3.88+

<your-nexus-url>/oidc/callback

Note: Nexus Repository 3.87.x, the OIDC/OAuth 2.0 integration with Microsoft Entra ID can fail after logout because Nexus appends a dynamic hash (derived from the last viewed page) to the redirect_uri, which causes Entra ID to reject the request with AADSTS50011 since it no longer matches the statically registered redirect URI.

This issue does not occur in 3.88+, where the redirect_uri remains constant (e.g. <base-url>/oidc/callback), so customers using Entra ID with OIDC should avoid 3.87.x and upgrade to 3.88 or later

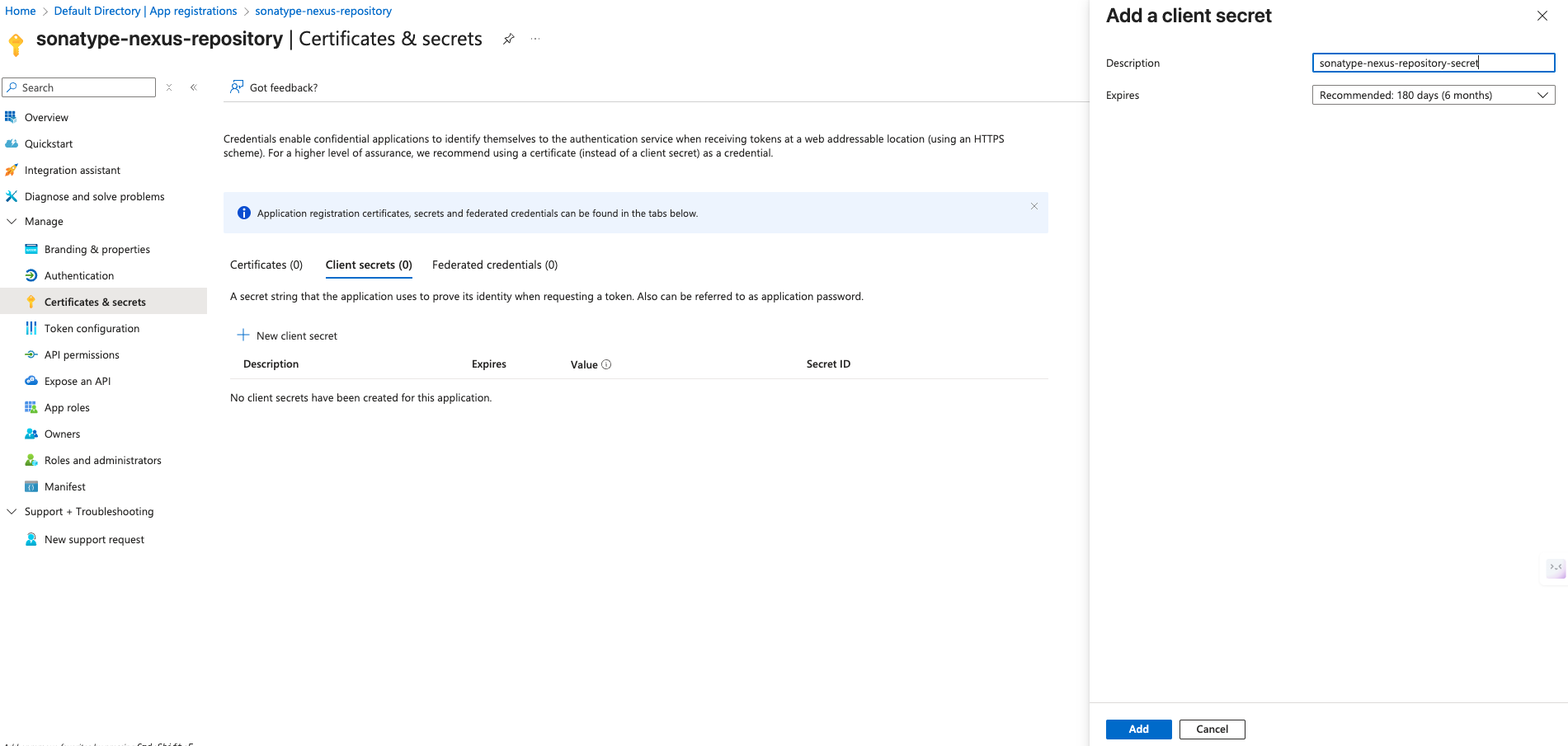

1.4 Create a Client Secret

  1. Go to Certificates & secrets → Client secrets.
  2. Click New client secret.
  3. Store the secret value securely. This value will be required when configuring Nexus Repository.

Create Secret - 1.png

1.5 Configure Token Claims

  1. Navigate to Token configuration → Add optional claim.
    • These claims will later be mapped within Nexus Repository

Optional Claim.png

  1. Select Token configuration → Add groups claim.

Create group claim.png

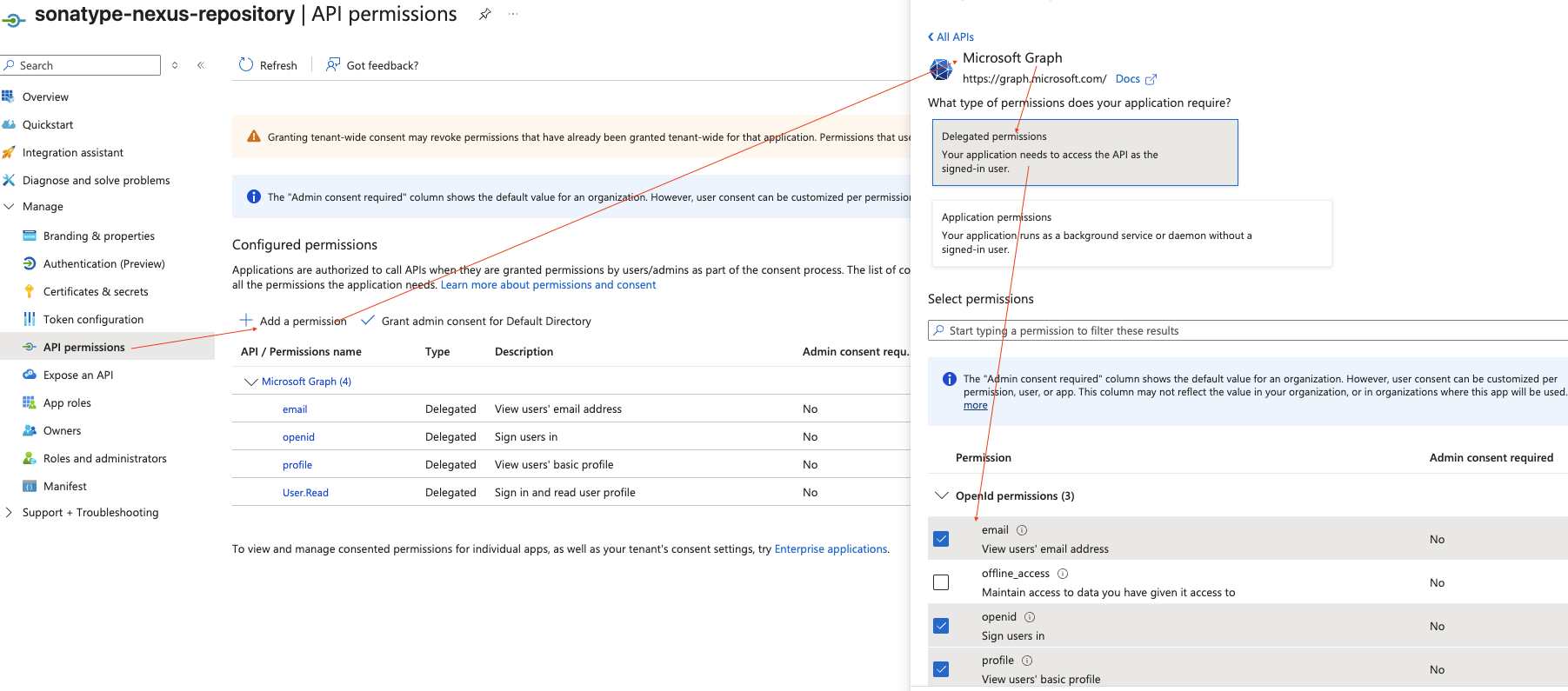

1.6 Configure API Permissions

  1. Go to API permissions → Add a permission.
  2. Select Microsoft Graph → Delegated permissions.
  3. Add the required permissions as shown below.

API Permissions.png

1.7 Assign Users and Groups

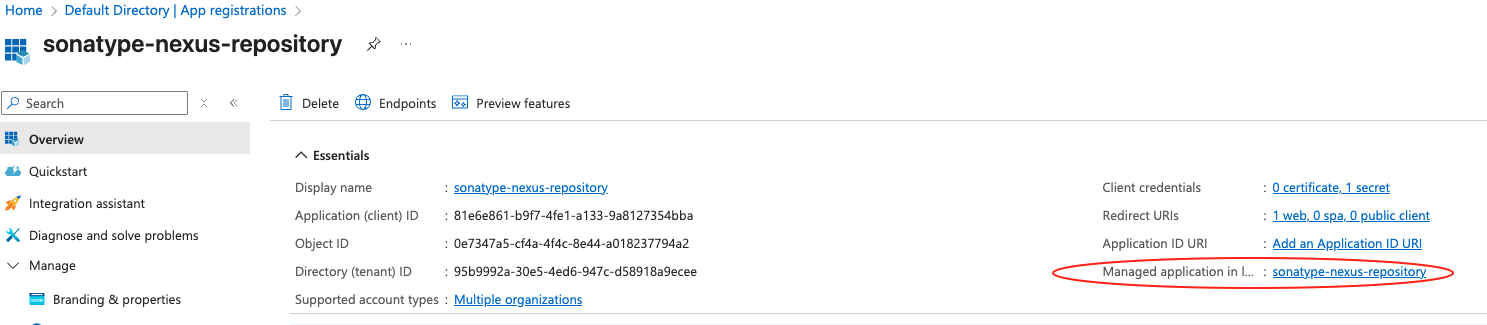

  1. From the registered application’s Overview page, click Managed application in the local directory.

application's overview.png

  1. Navigate to Users and groups → Add user/group.
  2. Select the test user created earlier and click Assign.

Assgin a User.png

1.8 Collect Required Information

After completing the application registration, collect the following values:

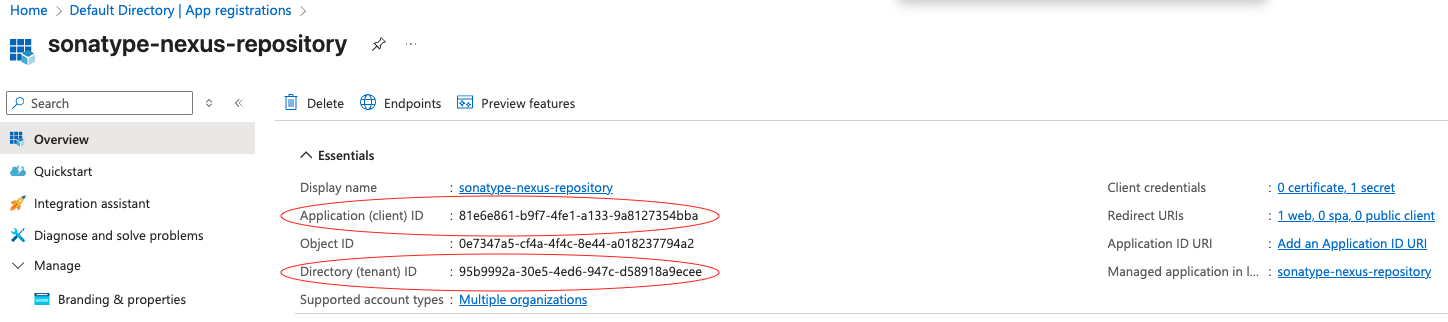

1.8.1 Application Identifiers

From the Overview page:

  • Application (client) ID – The application’s unique identifier
  • Directory (tenant) ID – The tenant’s unique identifier
  • Collect IDs.png
1.8.2 OIDC Metadata Endpoint

https://login.microsoftonline.com/{tenantID}/v2.0/.well-known/openid_configuration

2. Configure Nexus Repository

Log in to Nexus Repository as an administrator.

2.1 Configure OpenID Connect

Refer to the official for additional details: https://help.sonatype.com/en/openid-connect.html

Field Value OIDC Metadata / Reference
Client ID Application (client) ID from Step 1.8.1 client_id
Client Secret Client secret created in Step 1.4 N/A (configured manually)
Authorization URL https://login.microsoftonline.com/{tenantID}/oauth2/v2.0/authorize authorization_endpoint
Logout URL https://login.microsoftonline.com/{tenantID}/oauth2/v2.0/logout end_session_endpoint
Token URL https://login.microsoftonline.com/{tenantID}/oauth2/v2.0/token mtls_endpoint_aliases.token_endpoint
JSON Web Key URL https://login.microsoftonline.com/{tenantID}/discovery/v2.0/keys jwks_uri
Username Claim email , name or preferred_username Token claim
First Name Claim given_name (configured in Step 1.5) Token claim
Last Name Claim family_name (configured in Step 1.5) Token claim
Email Claim email Token claim
Groups Claim groups (configured in Step 1.5) Token claim
JWT Signature Algorithm RS256 id_token_signing_alg_values_supported

2.2 Configure External Role Mapping

  1. Navigate to Settings → Security → Roles.
  2. Click Create an external role mapping.
  3. Set the Mapped Role to the Group Object ID collected in Step 1.1.

External Role Mapping.png

2.3 Test the Configuration

2.3.1 Log In
  1. Click Log in.
    • NXRM 3.86: Select Sign in with OAuth2.
    • NXRM 3.87+: Select Continue with SSO.

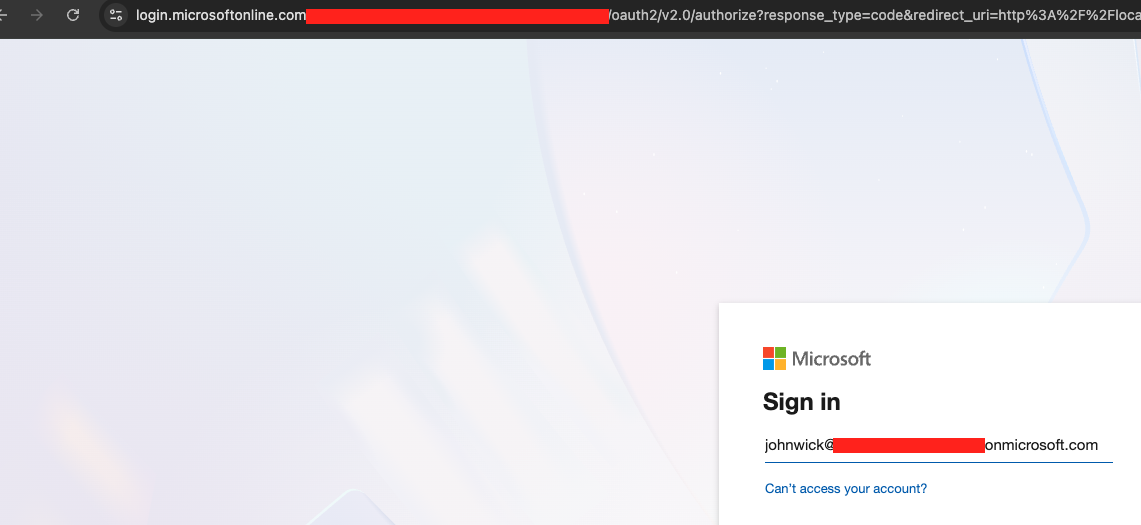

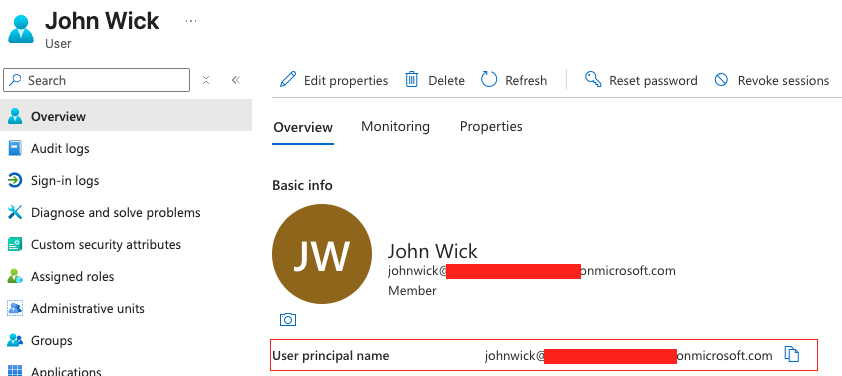

You will be redirected to the Microsoft sign-in page. Sign in using the user’s User Principal Name (UPN) from Entra ID.

Microsoft Sign In.png

User Principal name.png

2.3.2 Verify User Access

Confirm that:

  • The user is successfully authenticated.
  • The expected roles and permissions are applied.
  • User profile information (name, email, groups) is populated correctly.

User Info.png

My Account.png

3. Configure Sonatype Lifecycle

Log in to Sonatype Lifecycle as an administrator.

3.1 Configure OIDC

Refer to the official for additional details: https://help.sonatype.com/en/oidc-oauth2-configuration.html

and 2.1

3.2 Mapping Entra ID Groups to Lifecycle Roles

After OIDC authentication is configured, authorization in Lifecycle is handled separately. Lifecycle does not automatically map IdP groups to roles; instead, group-to-role assignments must be configured using the Authorization Configuration (Role Membership) REST API.

In this example, an Entra ID group (created during the Entra ID setup) is mapped to the built-in System Administrator role in Lifecycle.

3.2.1 Identify the Lifecycle Role ID

Each Lifecycle role has a unique internal ID. To locate the role ID for System Administrator, query the Roles REST API:

curl -u <username>:<password> 'http://<Lifecycle_HOST>:<PORT>/api/v2/roles'

From the response, note the id value associated with the System Administrator role.

Example:

"id": "1b92fae3e55a411793a091fb821c422d"
3.2.2 Identify the Entra ID Group Object ID

Use the Object ID of the Entra ID group created during the user and group setup phase. This value must exactly match the group ID emitted in the OIDC groups claim.

Example:

5c46c1f7-853c-4d82-aa9a-96927bde6e01
3.2.3 Map the Group to the Lifecycle

Use the Role Membership REST API to associate the Entra ID group with the desired Lifecycle role:

curl -u <username>:<password> -X PUT \
  'http://<Lifecycle_HOST>:<PORT>/api/v2/roleMemberships/global/role/{roleId}/group/{groupId}'

Where:

  • {roleId} is the Lifecycle Server role ID (for example, System Administrator)
  • {groupId} is the Entra ID Group Object ID

Example

curl -u admin:admin123 -X PUT \
  'http://localhost:8070/api/v2/roleMemberships/global/role/1b92fae3e55a411793a091fb821c422d/group/5c46c1f7-853c-4d82-aa9a-96927bde6e01'
3.2.4 Verify Role Membership

To confirm that the group has been successfully mapped to the role, query the role memberships endpoint:

curl -u <username>:<password> 'http://<Lifecycle_HOST>:<PORT>/api/v2/roleMemberships/global'

Verify that the Entra ID group ID appears under the expected role.

3.3 Test the Configuration

3.3.1 Log In

Sign in with "Single Sign-On (SSO)".You will be redirected to the Microsoft sign-in page. Sign in using the user’s User Principal Name (UPN) from Entra ID. (see 2.3.1)

3.3.2 Verify User Access

Confirm that:

  • The user is successfully authenticated.
  • The expected roles and permissions are applied.
  • User profile information (name, email, groups) is populated correctly.

IQ User Info.png
